wokwi uno

[description]

Source from google AI = Wokwi is a popular, free online electronics simulator used to design, code, and test embedded systems, primarily Arduino, ESP32, and STM32 boards, directly in a web browser. It enables instant prototyping with various virtual components (sensors, LEDs, displays) and features, including Wi-Fi simulation, without needing physical hardware, reducing the risk of component damage.

This kit let you fast prototyping into microcontroller world.
Simulation proof coding should be working and connection is right.
Hands on physical connection certainly is a must.

Flashing hex file into board to get actual result.

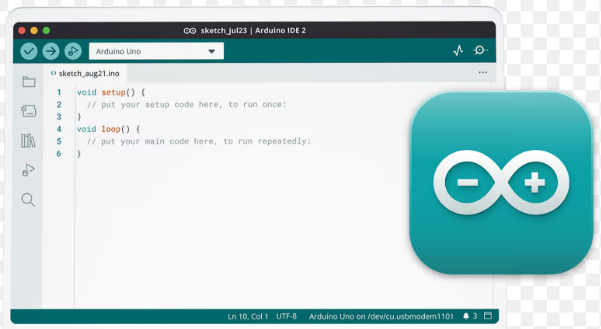

You also can copy the code from online wokwi simulation to Arduino IDE and compiled.
To get fast result and confidence, I suggest you just flashing the hex into the board.

Please click link to view simulation online, assembly and flash hex file to the board.

1 blink
2 button
3 buzzer
4 rgb
5 7segment
6 oled
7 16x2 lcd
8 dht22
9 servo
10 knob
11 ldr
12 ultrasonic

[connection]

Please view online wokwi simulation connection.

[codes]

how to flash hex file to uno.pdf

wokwi_uno.7z

legal disclaimer: the owner or seller of this wokwi uno maker kit shall not responsible for any lost or damages caused by using this product. Kids under 12 years should supervised by adult.
